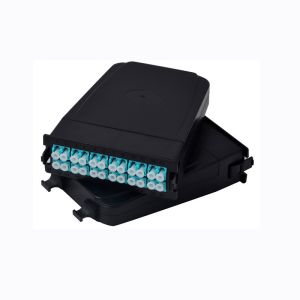

12core 24core MPO/MTP Module Cassettes for MPO MTP Fiber Optical Patch Panels Chassis Enclosures
Product description:
New Light MPO/MTP module Cassettes is mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex standard connector. By using the simplex or duplex patchcord, the output of the module can be directly connected with the equipments, frame or the client's end.
Features:
Adopts high quality engineering plastics and Aluminum alloy material
MPO faceplate can be upgraded easily.
All the front port are with mark no.easy to identify.
Quick and easy installed, flexible in configuration and easy to management
FHD High Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers and enterprise applications, 1U up to 96 LC fibers.
Product Features:
• High-density modular design, up to 96 fiber in 1U for efficient utilization.
• Pre-terminated cassette for improved reliability and quick deployment.
• High performance connectors to achieve a low loss optical budget.
• Plug-N-play modules allow fast installation of multiple fiber links.
• Offered in a wide range of performance and polarity configurations.
• The corning fiber compoliant to Telcordia, EIA/TIA and IEC standards.
Learn more ,pls link :
https://youtu.be/n0NzAOHr10s
| Fiber Count | 12 / 24 | Fiber Mode | OM3 50/125 μm |
| Front Connector Type | 12 LC UPC Duplex | Rear Connector Type | 1x MPO UPC Male (pinned) |
| MPO Adapter | Key up to Key down | Glass Fiber | Corning ClearCurve® |
| Insertion Loss | MPO≤0.35 dB, LC≤0.2 dB | Return Loss | MPO≥20 dB, LC≥30 dB |
| Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 75°C |
| Dimensions (HxWxD) | 1.38''x4.29''x4.64'' (35x109x118 mm) | Application | Matching for Type AF Cassette |
Performance Properties:
| Front Connector | LC/SC duplex |
| Material of Sleeve | Zirconia Ceramic |
| Insertion Loss | Multimode: UPC ≤0.2dB Single mode: APC ≤0.3dB UPC ≤0.2dB |
| Return Loss | Multimode: UPC ≥30dB Single mode: APC ≥60dB UPC ≥50dB |
| | |
Polarity Illustration:
In any installation, it is important to ensure that the transmitter at one end matches the corresponding receiver at the other end. FS provides a number of intelligent solutions that can help you manage and optimize your network and its connectivity.
